Best & Lloyd Oil Pump Spares

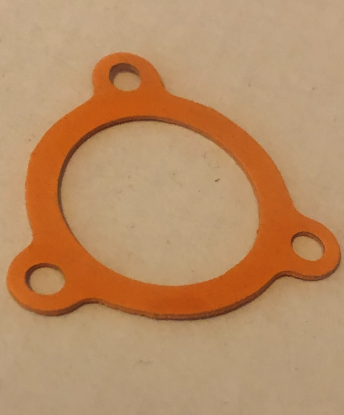

Best +Lloyd oil pump Tank/Pump gasket. the “ L56 Joint washer” Fits the more usual standard “1 inch” type of pump with the tube style oil sight glass, which went into production circa 1914,and the later style with the 36mm diameter disc type sight glass that went into production circa 1922/1923

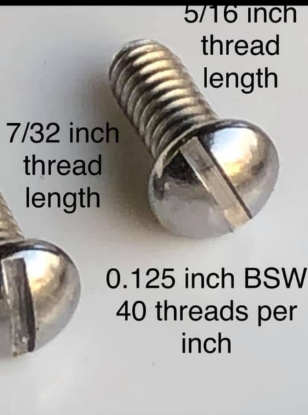

Domed Head screws 1/8-inch BSW thread,40 threads/per inch Stainless steel Screw A-Thread length 7/32 inch Screw B-Thread length 5/16 inch Two domed head screws are in the kit with a suitable dome profile and dome head diameter for those Best and Lloyd oil pumps with a metal pointer mounted on the disc face

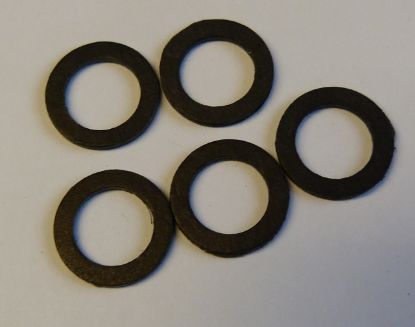

Hard Fibre washer packets 21/64 inch X 47/64 inch x 1/16inch (for Best+Lloyd oil pumps from 1914 onwards)

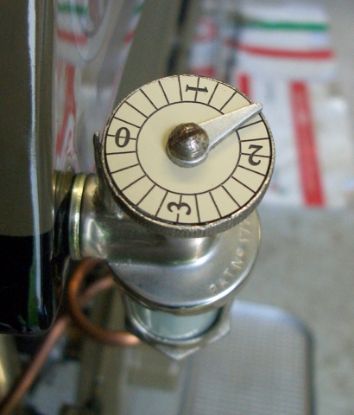

The oil drip calibration disc (regulator disc) fitted into the recess in the top of the regulating valve screw of both the early style of Best +Lloyd oil pump , with the tubular oil sight glass, and the later type with the 36 mm diameter disc type oil sight glass . Suitable for such pumps where the original disc was the non-metallic type The disc is engraved and has an Ivory hue For pre-1922 pumps, consider using disc part number 64-462

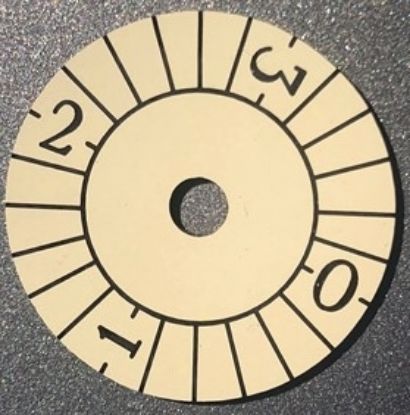

Oil drip calibration disc with the frequently used pre-1922 number and lines Font. The oil drip calibration disc (regulator disc) fitted into the recess in top of the regulating valve screw of the Best+Lloyd oil pump with the tubular oil sight glass. Suitable for pumps where the original disc was the non-metallic type. The disc is engraved and has an ivory hue If your pump is Post-1921 consider using the disc Part Nr.57-462

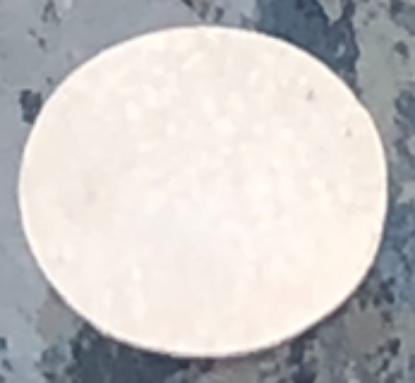

Non return valve disc The Pen-Metal disc. 0.25 Inches diameter+/-90 microns) 0.01 inches thick Stainless steel. Used with the valve disc holder part Nr 61-462 (Not Included)
